J4-M型双隔膜报警计量泵
J4-M型双隔膜报警计量泵性能参数
| 型号 Type |
流量L/h Flow |
最高压力 Mpa Maxium pressure |
|
|---|---|---|---|
| 电机 Motor 1.5kW |
电机 Motor 2.2kW |
||
| J4-M-70/20(10) | 70 | 10 | 20 |
| J4-M-90/16(8) | 90 | 8 | 16 |
| J4-M-120/12.5(6.3) | 120 | 6.3 | 12.5 |
| J4-M-150/10(5) | 150 | 5 | 10 |
| J4-M-200/8(4) | 200 | 4 | 8 |
| J4-M-250/6.3(3.2) | 250 | 3.2 | 6.3 |
| J4-M-320/5(2.5) | 320 | 2.5 | 5 |
| J4-M-400/4(2) | 400 | 2 | 4 |
| J4-M-500/3.2(1.6) | 500 | 1.6 | 3.2 |
| J4-M-630/2.5(1.25) | 630 | 1.25 | 2.5 |
| J4-M-800/2(1) | 800 | 1 | 2 |
| J4-M-1000/1.6(0.8) | 1000 | 0.8 | 1.6 |
| J4-M-1250/1.25(0.63) | 1250 | 0.63 | 1.25 |
| J4-M-1600/1(0.5) | 1600 | 0.5 | 1 |
| J4-M-2000/0.8(0.4) | 2000 | 0.4 | 0.8 |
| J4-M-2500/0.63(0.32) | 2500 | 0.32 | 0.63 |
| J4-M-3200/0.5 | 3200 | 0.5 | |
| J4-M-4000/0.4 | 4000 | 0.4 | |
J4-M型双隔膜报警计量泵安装尺寸
| 型号 Type | A1 | A2 | B | C |
|---|---|---|---|---|
| J4-M-70/20(10) | 216 | 216 | 190 | Φ20(外径)x4管 |
| J4-M-90/16(8) | 216 | 216 | 190 | Φ20(外径)x4管 |
| J4-M-120/12.5(6.3) | 216 | 216 | 190 | Φ20(外径)x4管 |
| J4-M-150/10(5) | 216 | 216 | 190 | Φ20(外径)x4管 |
| J4-M-200/8(4) | 218 | 218 | 197 | DN15-PN40 RF(Rp) GB/T9119 |
| J4-M-250/6.3(3.2) | 218 | 218 | 197 | DN15-PN40 RF(Rp) GB/T9119 |
| J4-M-320/5(2.5) | 262 | 222 | 198 | DN20-PN40 RF(Rp) GB/T9119 |
| J4-M-400/4(2) | 262 | 222 | 198 | DN20-PN40 RF(Rp) GB/T9119 |
| J4-M-500/3.2(1.6) | 295 | 225 | 198 | DN25-PN40 RF(Rp) GB/T9119 |
| J4-M-630/2.5(1.25) | 295 | 225 | 198 | DN25-PN40 RF(Rp) GB/T9119 |
| J4-M-800/2(1) | 283 | 263 | 210 | DN32-PN40 RF(Rp) GB/T9119 |
| J4-M-1000/1.6(0.8) | 283 | 263 | 210 | DN32-PN40 RF(Rp) GB/T9119 |
| J4-M-1250/1.25(0.63) | 265 | 265 | 214 | DN40-PN40 RF(Rp) GB/T9119 |
| J4-M-1600/1(0.5) | 265 | 265 | 214 | DN40-PN40 RF(Rp) GB/T9119 |
| J4-M-2000/0.8(0.4) | 294 | 294 | 223 | DN50-PN40 RF(Rp) GB/T9119 |
| J4-M-2500/0.63(0.32) | 294 | 294 | 223 | DN50-PN40 RF(Rp) GB/T9119 |
| J4-M-3200/0.5 | 294 | 294 | 223 | DN50-PN40 RF(Rp) GB/T9119 |
| J4-M-4000/0.4 | 294 | 294 | 223 | DN50-PN40 RF(Rp) GB/T9119 |

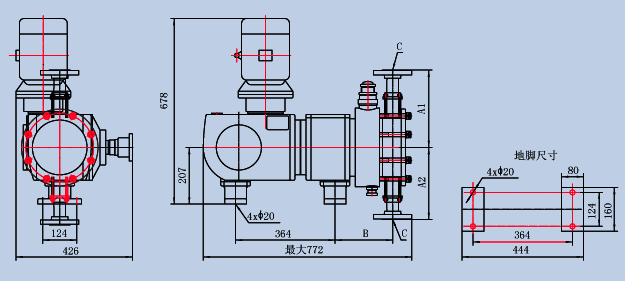

J4-M型双隔膜报警计量泵安装图
