J2-G型高温柱塞计量泵

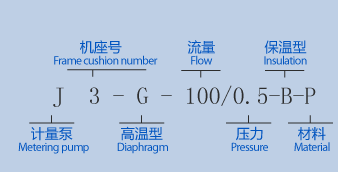

J2-G型高温柱塞计量泵性能参数
| 型号 Type |
流量L/h Flow |
最高压力 Mpa Maxium pressure |
入出管联 inlet/outlet pipe connections |
||
|---|---|---|---|---|---|
| 电机 Motor 0.37kW |
电机 motor 0.55kW |
电机 Motor 0.75kW |
|||
| J2-G-1.2/20 | 1.2 | 20 | Φ14(外径)x3管 | ||
| J2-G-2/20 | 2 | 20 | Φ14(外径)x3管 | ||
| J2-G-3.2/20 | 3.2 | 20 | Φ14(外径)x3管 | ||
| J2-G-5/16 | 5 | 16 | 16 | Φ14(外径)x3管 | |
| J2-G-6.3/40(16) | 6.3 | 16 | 40 | Φ12(外径)x3管 | |
| J2-G-8/32(12.5) | 8 | 12.5 | 32 | Φ12(外径)x3管 | |
| J2-G-10/25(10) | 10 | 10 | 25 | Φ12(外径)x3管 | |
| J2-G-13/20(8) | 13 | 8 | 20 | Φ12(外径)x3管 | |
| J2-G-18/16(6.3) | 18 | 6.3 | 16 | Φ14(外径)x3管 | |
| J2-G-22/12.5(5) | 22 | 5 | 12.5 | Φ14(外径)x3管 | |
| J2-G-32/10(4) | 32 | 4 | 10 | Φ14(外径)x3管 | |
| J2-G-40/8(3.2) | 40 | 3.2 | 8 | Φ14(外径)x3管 | |
| J2-G-50/6.3(2.5) | 50 | 2.5 | 6.3 | GB/T9119 DN15PN50RF(NPT) | |
| J2-G-63/5(2) | 63 | 2 | 5 | GB/T9119 DN15PN50RF(NPT) | |
| J2-G-80/4(1.6) | 80 | 1.6 | 4 | GB/T9119 DN15PN40RF(Rp) | |
| J2-G-100/3.2(1.25) | 100 | 1.25 | 3.2 | GB/T9119 DN15PN40RF(Rp) | |
| J2-G-125/2.5(1) | 125 | 1 | 2.5 | GB/T9119 DN15PN40RF(Rp) | |
| J2-G-160/2(0.8) | 160 | 0.8 | 2 | GB/T9119 DN15PN40RF(Rp) | |
| J2-G-200/1.6(0.63) | 200 | 0.63 | 1.6 | GB/T9119 DN15PN40RF(Rp) | |
| J2-G-250/1.3 | 250 | 1.3 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-320/1 | 320 | 1 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-400/0.8 | 400 | 0.8 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-500/0.63 | 500 | 0.63 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-630/0.5 | 630 | 0.5 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-800/0.4 | 800 | 0.4 | GB/T9119 DN15PN40RF(Rp) | ||
| J2-G-1000/0.32 | 1000 | 0.32 | GB/T9119 DN15PN40RF(Rp) | ||
J2-G型高温柱塞计量泵安装尺寸
| 型号 Type | A | B | C |
|---|---|---|---|
| J2-G-1.2/20 | 118 | 74 | 12(外径)x3管 |
| J2-G-2/20 | 124 | 74 | 12(外径)x3管 |
| J2-G-3.2/20 | 124 | 93 | 12(外径)x3管 |
| J2-G-5/16 | 165 | 81 | 14(外径)x3管 |
| J2-G-6.3/40(16) | 124 | 74 | 12(外径)x3管 |
| J2-G-8/32(12.5) | 124 | 74 | 12(外径)x3管 |
| J2-G-9/10 | 124 | 93 | 12(外径)x3管 |
| J2-G-10/25(10) | 124 | 93 | 12(外径)x3管 |
| CJ2-G-13/20(8) | 124 | 93 | 12(外径)x3管 |
| J2-G-15/6.3 | 124 | 93 | 14(外径)x3管 |
| J2-G-18/16(6.3) | 165 | 81 | 14(外径)x3管 |
| J2-G-22/12.5(5) | 165 | 81 | 14(外径)x3管 |
| J2-G-32/10(4) | 165 | 81 | 14(外径)x3管 |
| J2-G-40/8(3.2) | 165 | 81 | 14(外径)x3管 |
| J2-G-50/6.3(2.5) | 149 | 87 | DN15PN50RF(NPT) |
| J2-G-63/5(2) | 149 | 87 | DN15PN50RF(NPT) |
| J2-G-80/4 (1.6) | 123 | 84 | DN15PN40RF(Rp) |
| J2-G-100/3.2(1.25) | 123 | 81 | 14(外径)x3管 |
| J2-G-40/8(3.2) | 165 | 84 | DN15PN40RF(Rp) |
| J2-G-125/2.5(1) | 137 | 82 | DN15PN40RF(Rp) |
| J2-G-160/2(0.8) | 137 | 82 | DN15PN40RF(Rp) |
| J2-G-200/1.6(0.63) | 144 | 86 | DN15PN40RF(Rp) |
| J2-G-250/1.3 | 144 | 86 | DN15PN40RF(Rp) |
| J2-G-200/1.6(0.63) | 161 | 103 | DN20PN40RF(Rp) |
| J2-G-400/0.8 | |||
| J2-G-500/0.63 | 186 | 103 | DN25PN6RF(Rp) |
| J2-G-630/0.5 | |||
| J2-G-800/0.4 | 207 | 109 | DN32PN6RF(Rp) |
| CYJ2-1000/0.32 |
J2-G型高温柱塞计量泵安装图
