CYJ4型柱塞计量泵
CYJ4型柱塞计量泵性能参数
| 型号 Type |
流量L/h Flow |
最高压力 Mpa Maxium pressure |
|
|---|---|---|---|
| 电机 Motor 1.5kW |
电机 Motor 2.2kW |
||
| CYJ4-25/50(25) | 25 | 25 | 50 |
| CYJ4-32/40(20) | 32 | 20 | 40 |
| CYJ4-40/32(16) | 40 | 26 | 32 |
| CYJ4-50/25(12.5) | 50 | 12.5 | 25 |
| CYJ4-70/20(10) | 70 | 10 | 20 |
| CYJ4-90/16(8) | 90 | 8 | 16 |
| CYJ4-120/12.5(6.3) | 120 | 6.3 | 12.5 |
| CYJ4-150/10(5) | 150 | 5 | 10 |
| CYJ4-200/8(4) | 200 | 4 | 8 |
| CYJ4-250/6.3(3.2) | 250 | 3.2 | 6.3 |
| CYJ4-320/5(2.5) | 320 | 2.5 | 5 |
| CYJ4-400/4(2) | 400 | 2 | 4 |
| CYJ4-500/3.2(1.6) | 500 | 1.6 | 3.2 |
| CYJ4-630/2.5(1.25) | 630 | 1.25 | 2.5 |
| CYJ4-800/2(1) | 800 | 1 | 2 |
| CYJ4-1000/1.6(0.8) | 1000 | 0.8 | 1.6 |
| CYJ4-1250/1.25(0.63) | 1250 | 0.63 | 1.25 |
| CYJ4-1600/1(0.5) | 1600 | 0.5 | 1 |
| CYJ4-2000/0.8(0.4) | 2000 | 0.4 | 0.8 |
| CYJ4-2500/0.63(0.32) | 2500 | 0.32 | 0.63 |
| CYJ4-3200/0.5 | 3200 | 0.5 | |
| CYJ4-4000/0.4 | 4000 | 0.4 | |
CYJ4型柱塞计量泵安装尺寸
| 型号 Type | A1 | B | C |
|---|---|---|---|
| CYJ4-25/50(25) | 159 | 146 | Φ20(外径)x5管 |
| CYJ4-32/40(20) | |||
| CYJ4-40/32(16) | 159 | 130 | Φ20(外径)x4管 |
| CYJ4-50/25(12.5) | |||
| CYJ4-70/20(10) | 159 | 124 | Φ20(外径)x4管 |
| CYJ4-90/16(8) | |||
| CYJ4-120/12.5(6.3) | 186 | 137 | DN15-PN150 RF GB/T9119 |
| CYJ4-150/10(5) | |||
| CYJ4-200/8(4) | 176 | 137 | DN15-PN110 RF GB/T9119 |
| CYJ4-250/6.3(3.2) | |||
| CYJ4-320/5(2.5) | 200 | 134 | DN20-PN50 RF GB/T9119 |
| CYJ4-400/4(2) | |||
| CYJ4-500/3.2(1.6) | 175 | 146 | DN25-PN40 RF GB/T9119 |
| CYJ4-630/2.5(1.25) | |||
| CYJ4-800/2(1) | 200 | 138 | DN32-PN40 RF GB/T9119 |
| CYJ4-1000/1.6(0.8) | |||
| CYJ4-1250/1.25(0.63) | 209 | 152 | DN40-PN40 RF GB/T9119 |
| CYJ4-1600/1(0.5) | |||
| CYJ4-2000/0.8(0.4) | 231 | 160 | DN50-PN6 RF GB/T9119 |
| CYJ4-2500/0.63(0.32) | |||
| CYJ4-3200/0.5 | 264 | 188 | DN65-PN6 RF GB/T9119 |
| CYJ4-4000/0.4 |

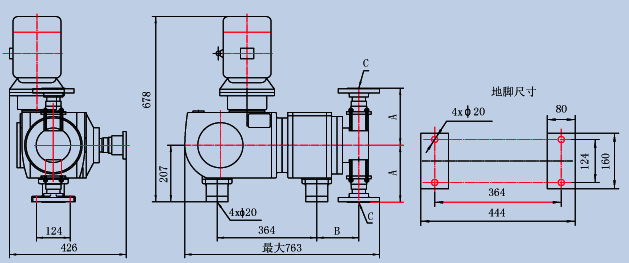

CYJ4型柱塞计量泵安装图
